Description
Take a Closer Look
Further and Clearer Vision
40MP zoom camera supports up to 34× optical zoom and 400× digital. 3000m max laser rangefinding distance is an approx. 2.5-times increase. [1]
Enhanced Night Vision
Zoom and wide camera support Night Scene mode to improve performance in low light. Zoom camera supports IR Light and NIR Illumination. [2]
Powerful Infrared Performance
1280×1024 resolution is a 4x improvement. [3] UHR Infrared Image function [4] allows clear imaging at higher zoom. Max measurable temperature is 1600° C (2192° F), three times that of the previous generation. [5]
Reliable Information Sync
Experience 30s max pre-recording, media and video transmission encryption with one-click log clearance, and live views via DJI FlightHub 2.
Smart Multi-Scenario Operation
Supports Smart Capture for detailed photos in dramatic lighting conditions. Electronic dehazing [6] improves imaging clarity in haze/fog etc.
Environmental Adaptability
Dust and water resistance rated at IP54,[7] and operational from -20° to 50° C (-4° to 122° F), meeting all-weather operational demands.

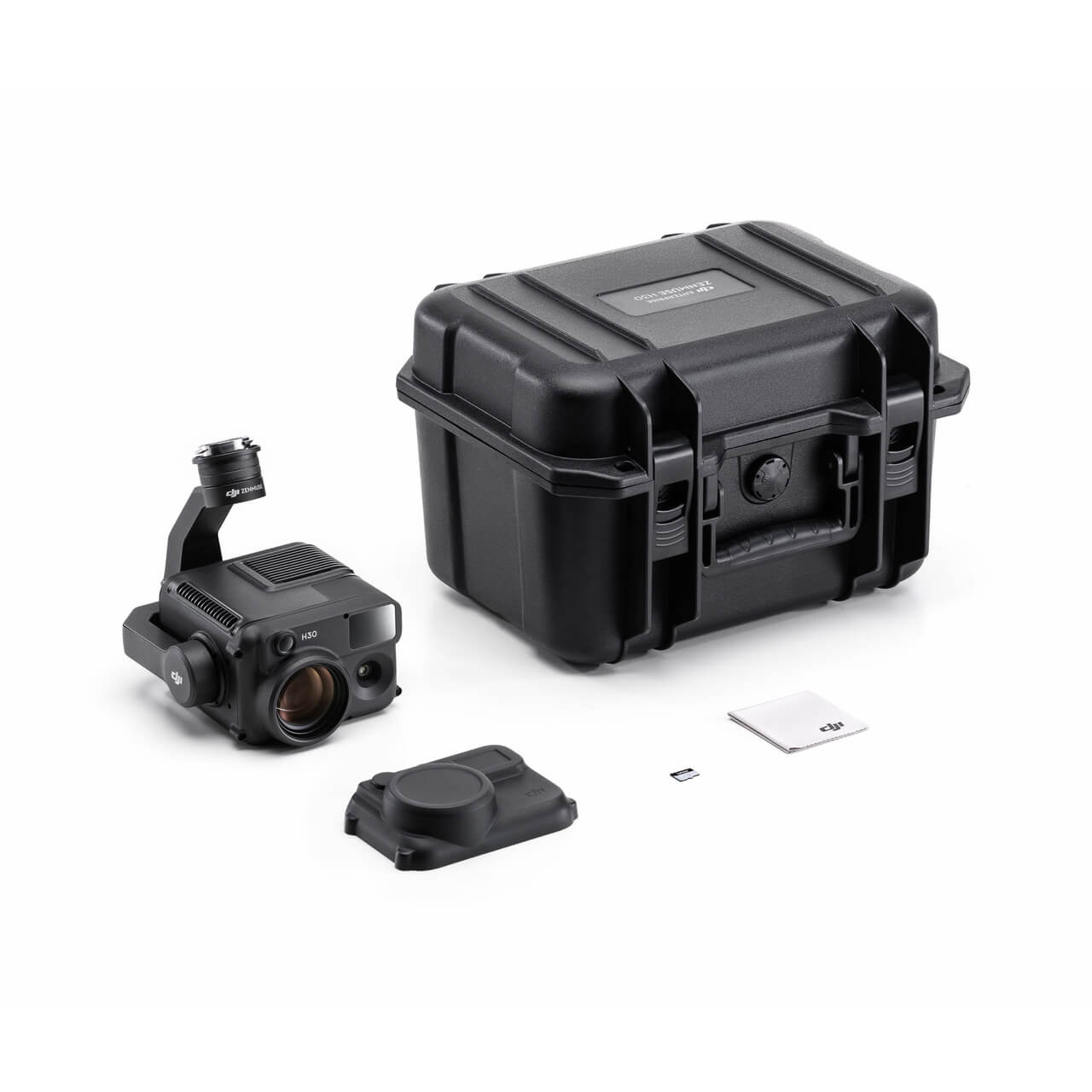

In the Box

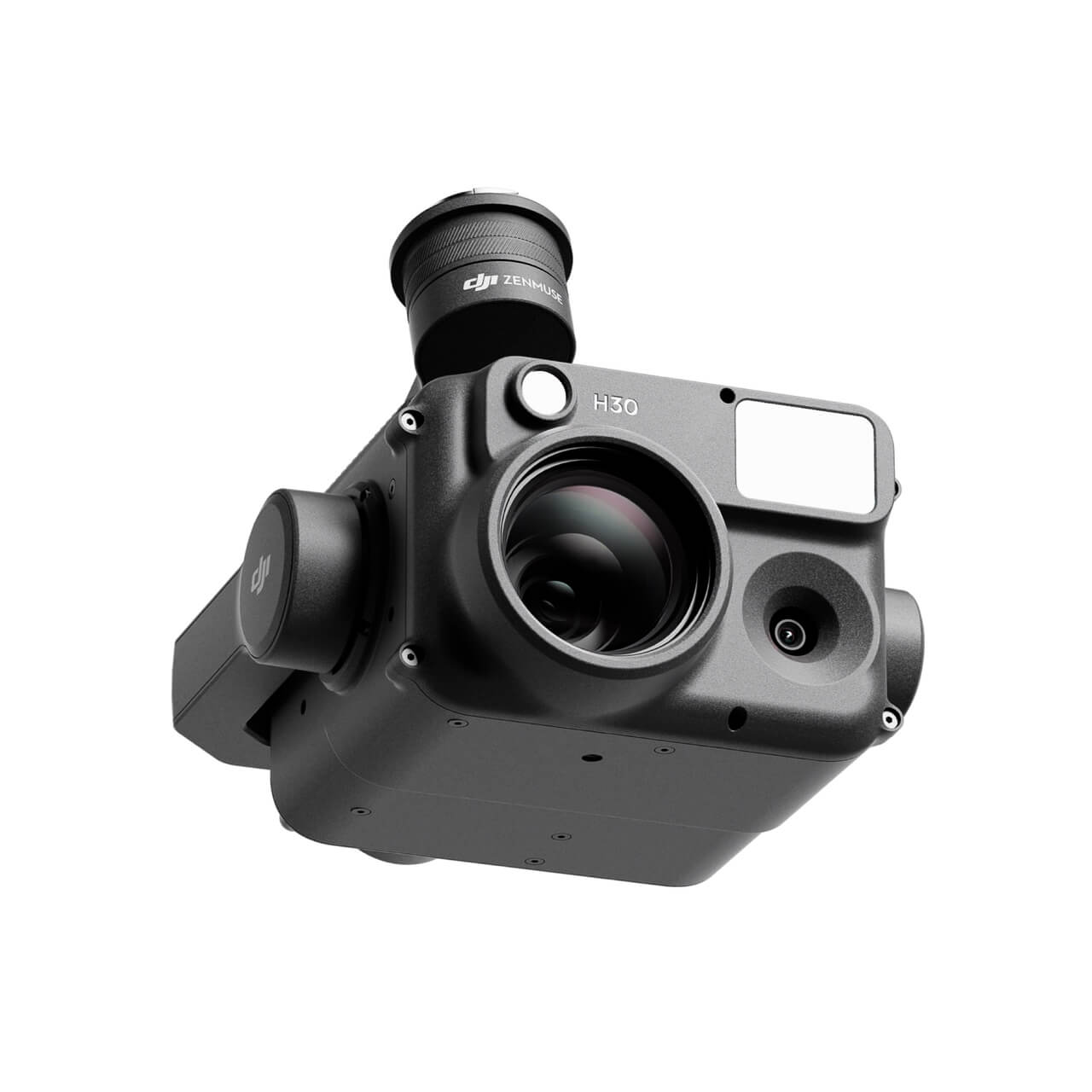

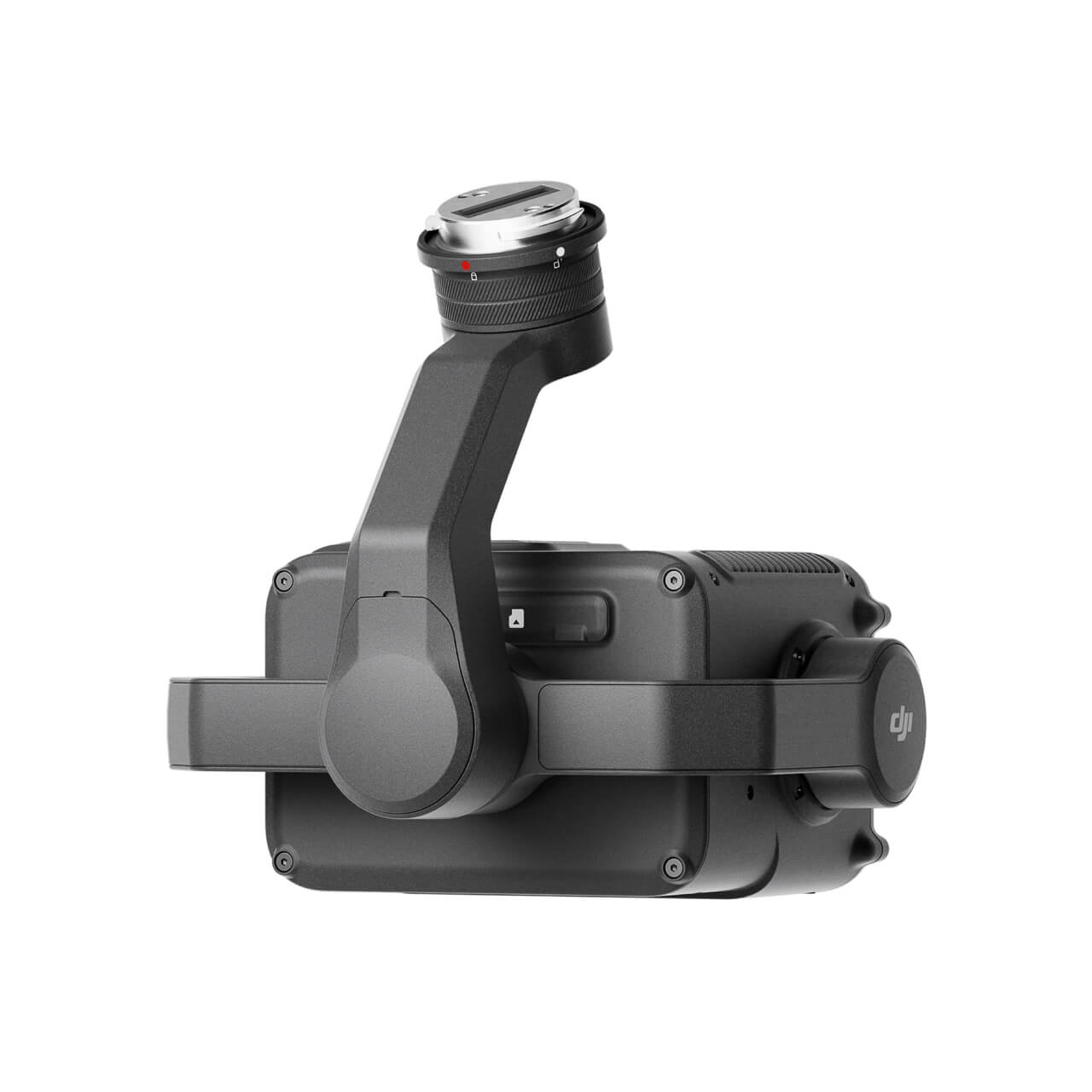

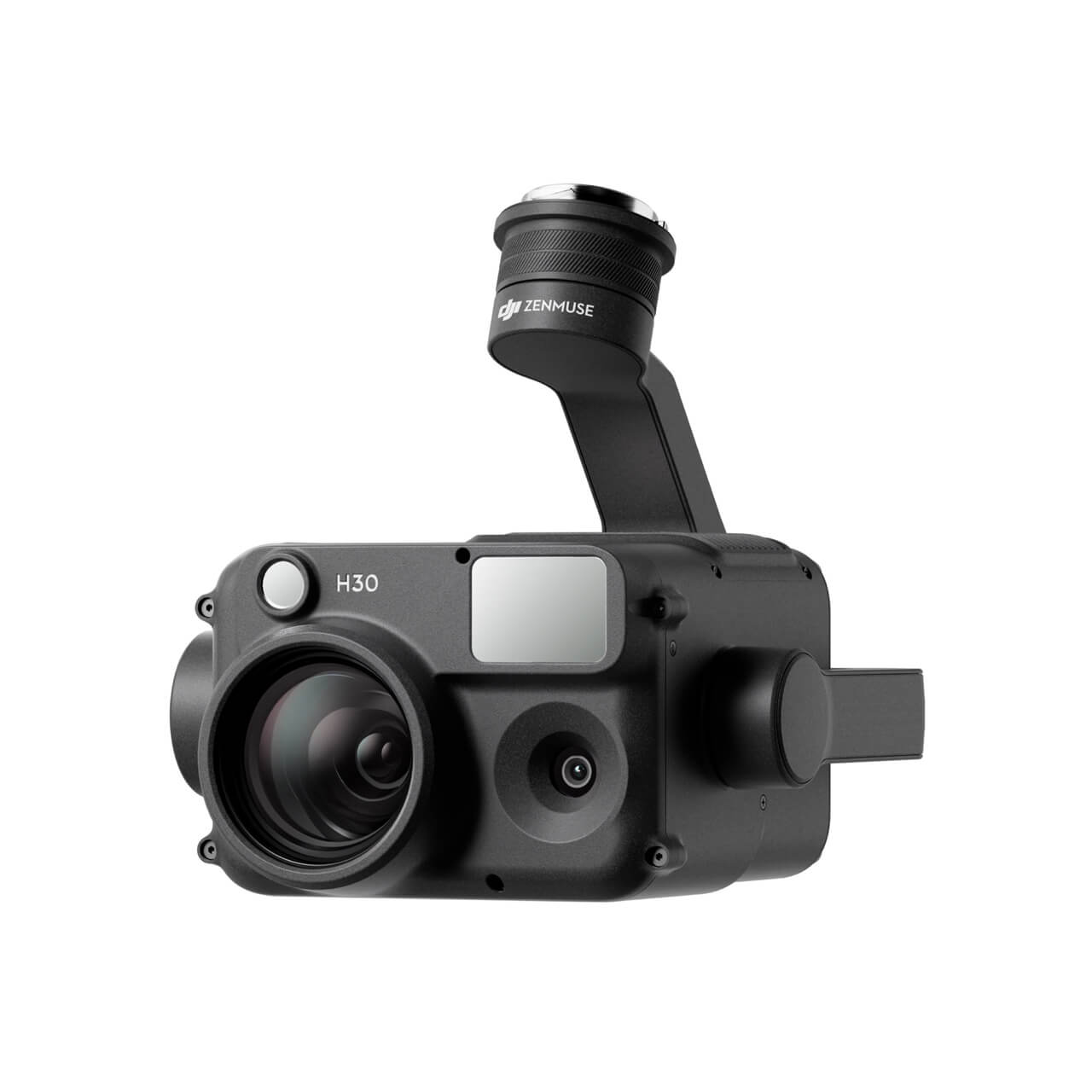

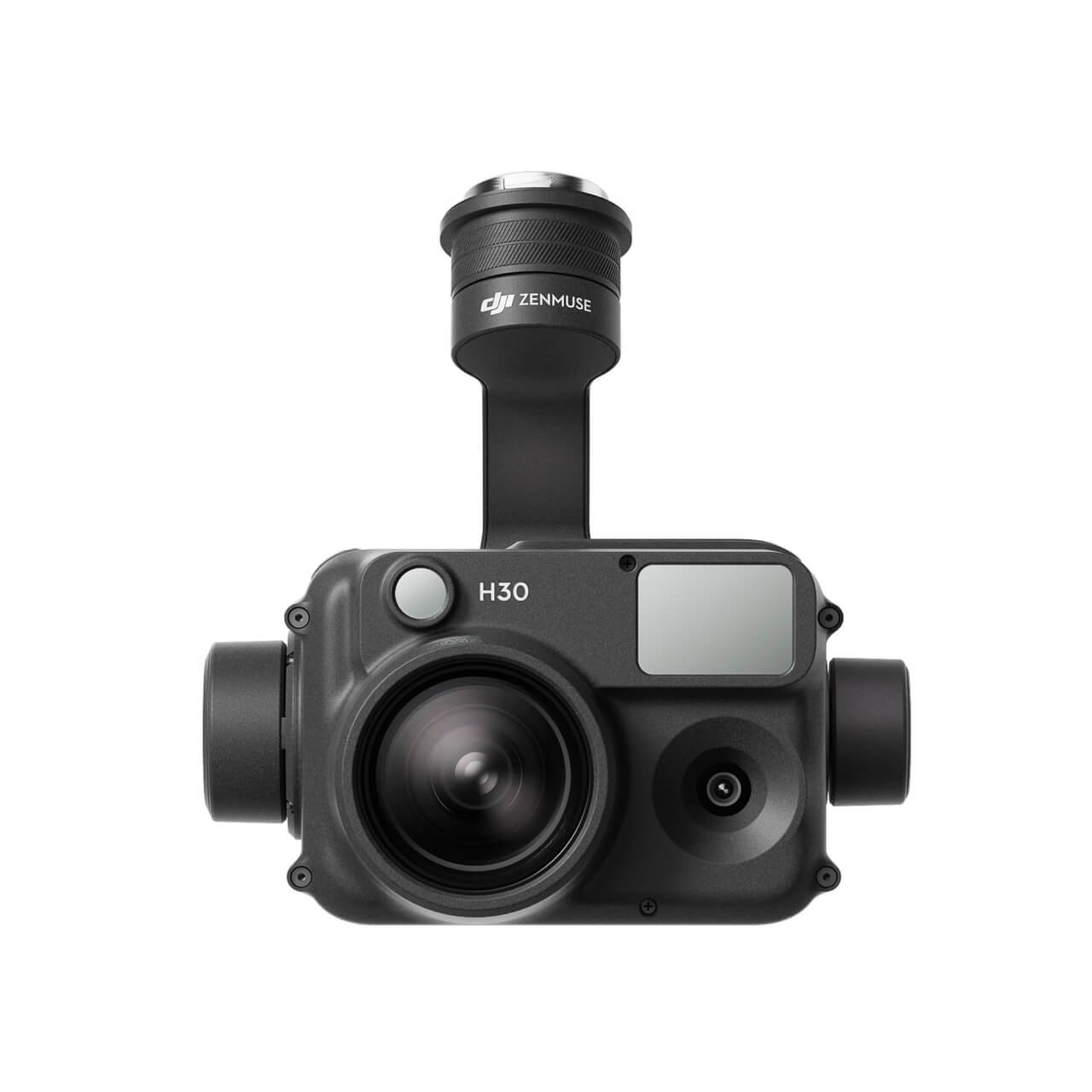

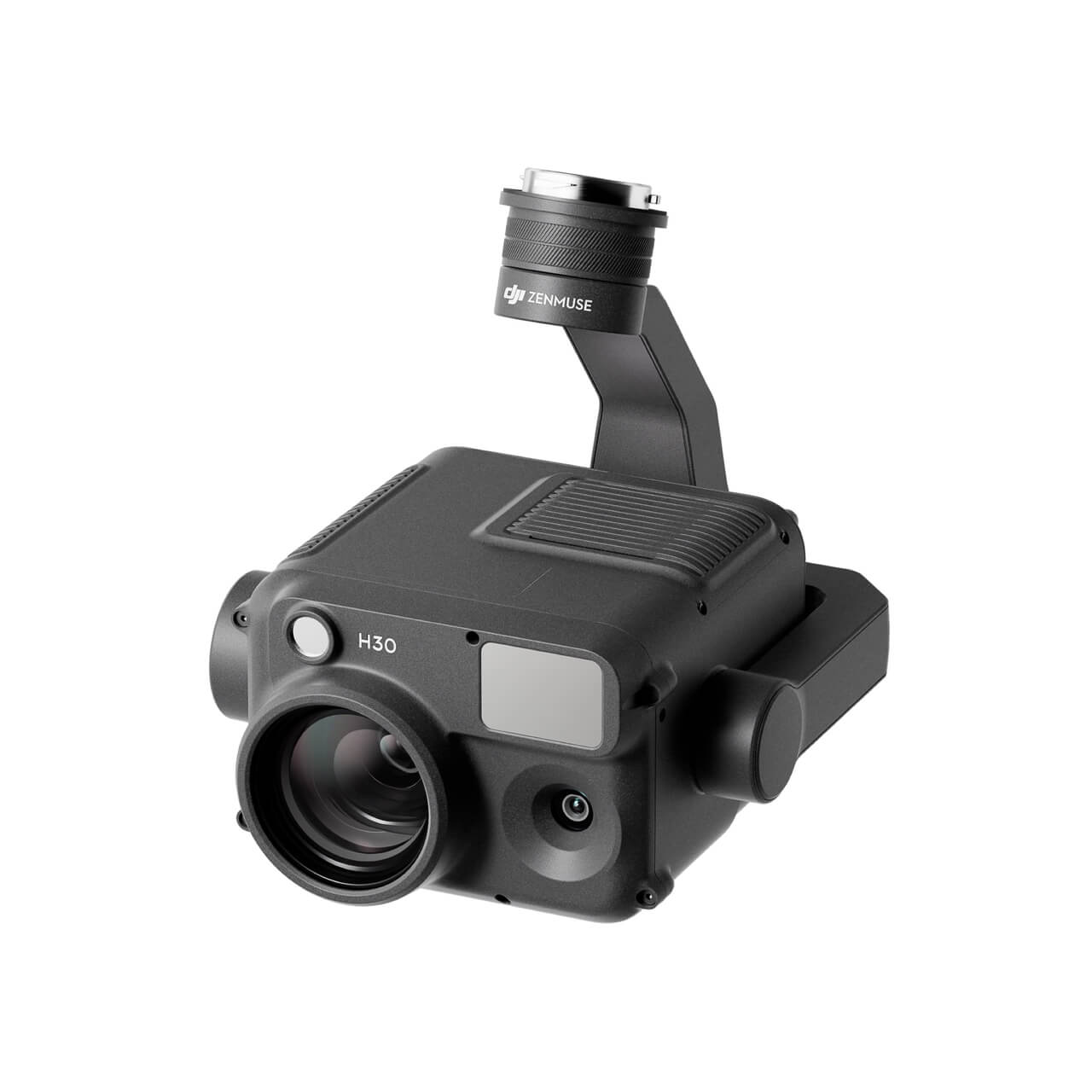

Zenmuse H30
× 1

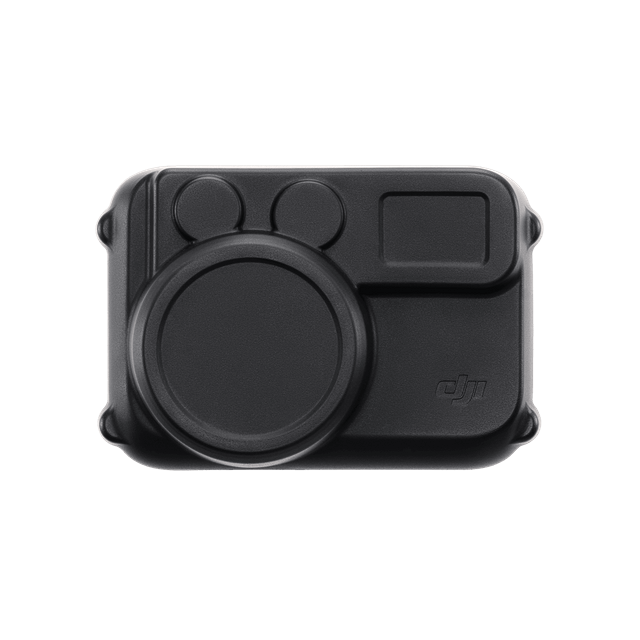

Lens Cap
× 1

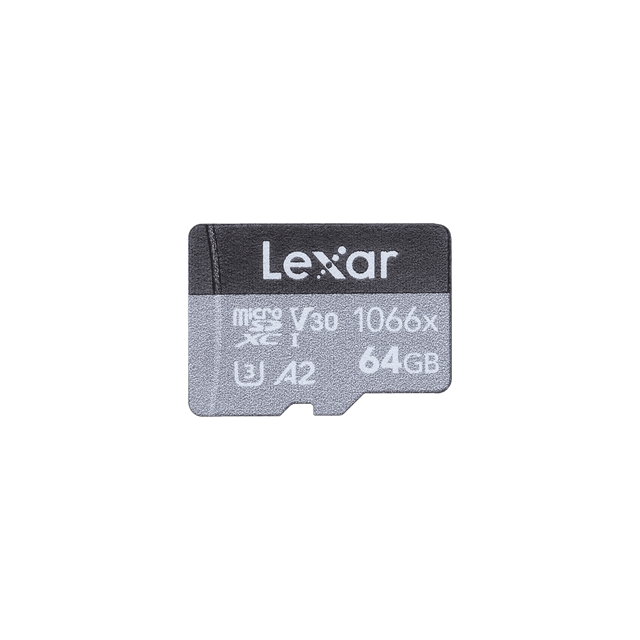

microSD Card (64GB)
× 1

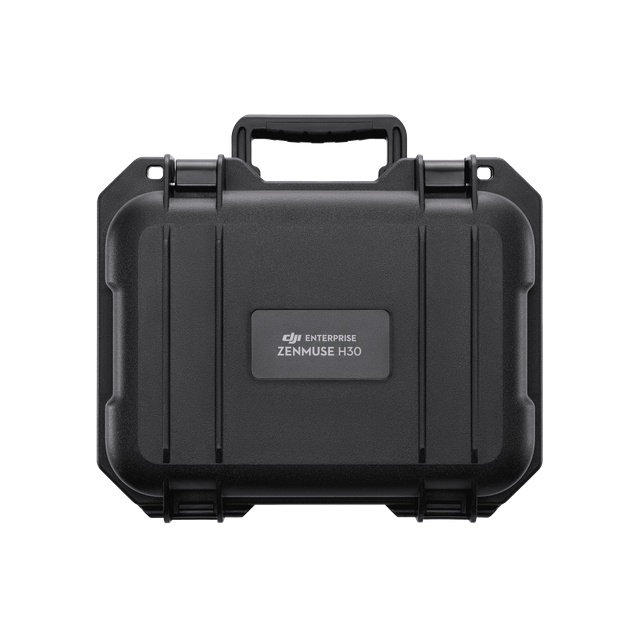

Storage Case
× 1

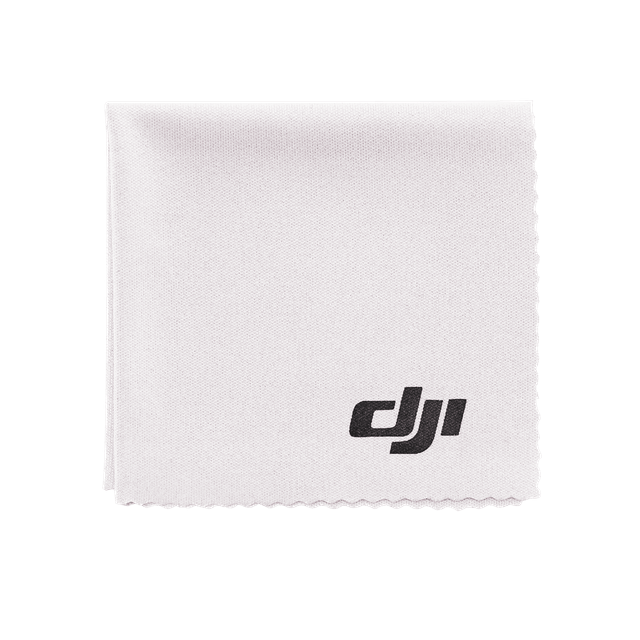

Lens Cleaning Cloth
× 1
Let’s Answer Your Questions
To ensure operation safety, if your product encounters flight accidents like collision, water damage, or accidents related to signal interference within 12 months after activation, we will provide affordable replacements or free repairs according to the combo type.
The Worry-Free Basic Combo provides up to two affordable replacements. After paying the corresponding replacement fee, you can have your damaged product replaced with a well-functioning one.*
The Worry-Free Plus Combo provides a coverage amount equivalent to the product’s value. You can enjoy unlimited free repairs within the coverage amount.
* Replacement products are brand-new or equivalent to brand-new in performance and reliability. For each replacement, you will need to pay $229 / £249 / 279 € / AUD $499 / HKD＄1,999.
Matrice 350 RTK and Matrice 300 RTK. The only compatible remote controller is DJI RC Plus. Before using, please upgrade the firmware of the drone and remote controller to the latest version.
Either of the Zenmuse H30 Series payloads can be mounted onto any gimbal port on the Matrice 350 RTK or Matrice 300 RTK.
1. Enhanced visible light capabilities: Supports up to 34× optical zoom and 400× digital zoom.
2. Improved infrared thermal camera: Resolution increased from 640×512 to 1280×1024; features High-Res mode for better observation of objects with small temperature differences; expanded temperature measurement range from -20° to 1600° C (-4° to 2912° F).*
3. Enhanced night scene capabilities, with adjustable frame rates of 25fps, 15fps, and 5fps; and features an NIR auxiliary light.
4. Extended laser rangefinding range up to 3000 meters.
5. Supports Smart Capture.
6. Supports electronic dehazing.
7. Provides video foreground stabilization, enhancing efficiency in operations such as powerline inspections.
* With an Infrared Density Filter installed, the max measurement temperature can reach 1600° C (2912° F).
Pre-recording is a feature that allows the device to cache a segment of video for a set duration before the user starts recording. When recording begins, the cached content is included in the video, preventing excessive use of microSD card space.
Purpose: With pre-recording enabled, even if recording starts after an event has begun, the device can save the moments before the recording started onto the microSD card, ensuring that potentially critical information isn’t missed.
The products are suitable for a wide range of fields, including but not limited to geothermal inspection, firefighting and search and rescue, forest fire prevention, wildlife protection, power line inspection, oil and gas inspection, traffic law enforcement, facility inspection, and infrastructure inspection.
It extends the thermal imaging module’s temperature measurement range to 0° to 1600° C (32° to 2912° F), allowing for more effective temperature variation assessment and rapid locating of high-temperature points.
