Description

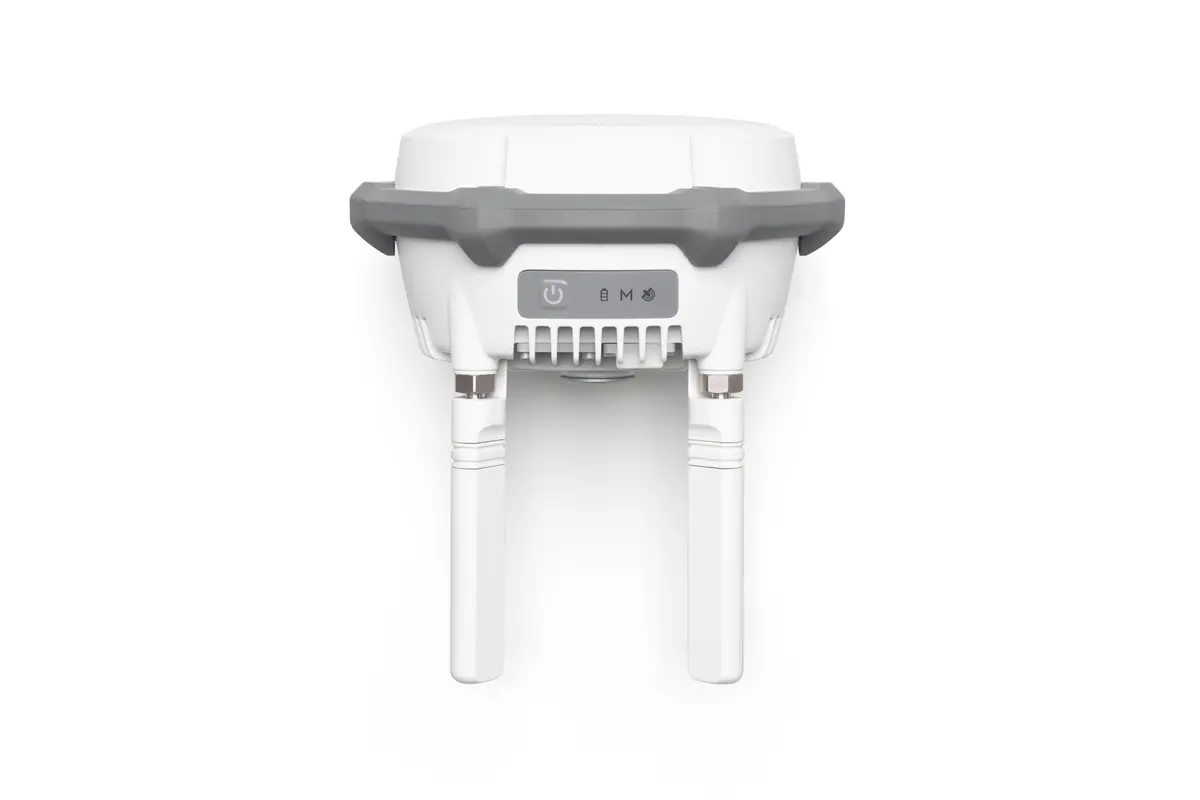

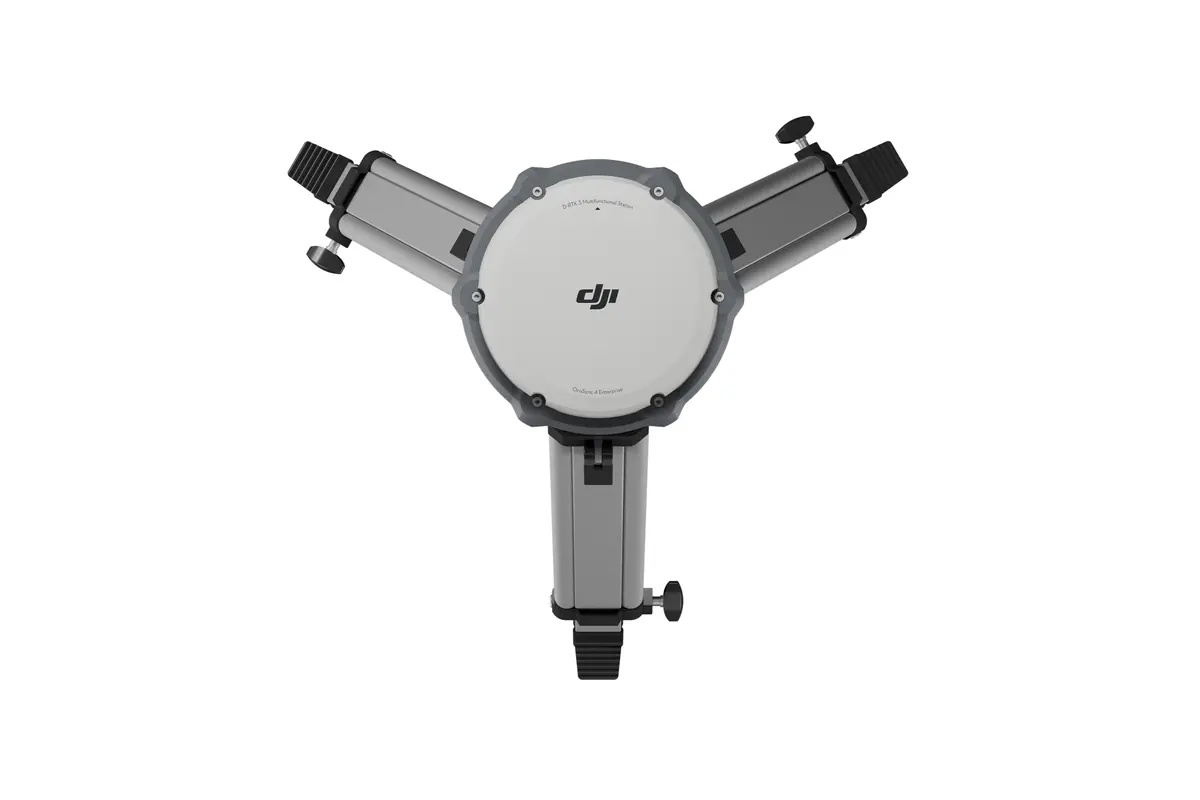

DJI D-RTK 3 Multifunctional Station

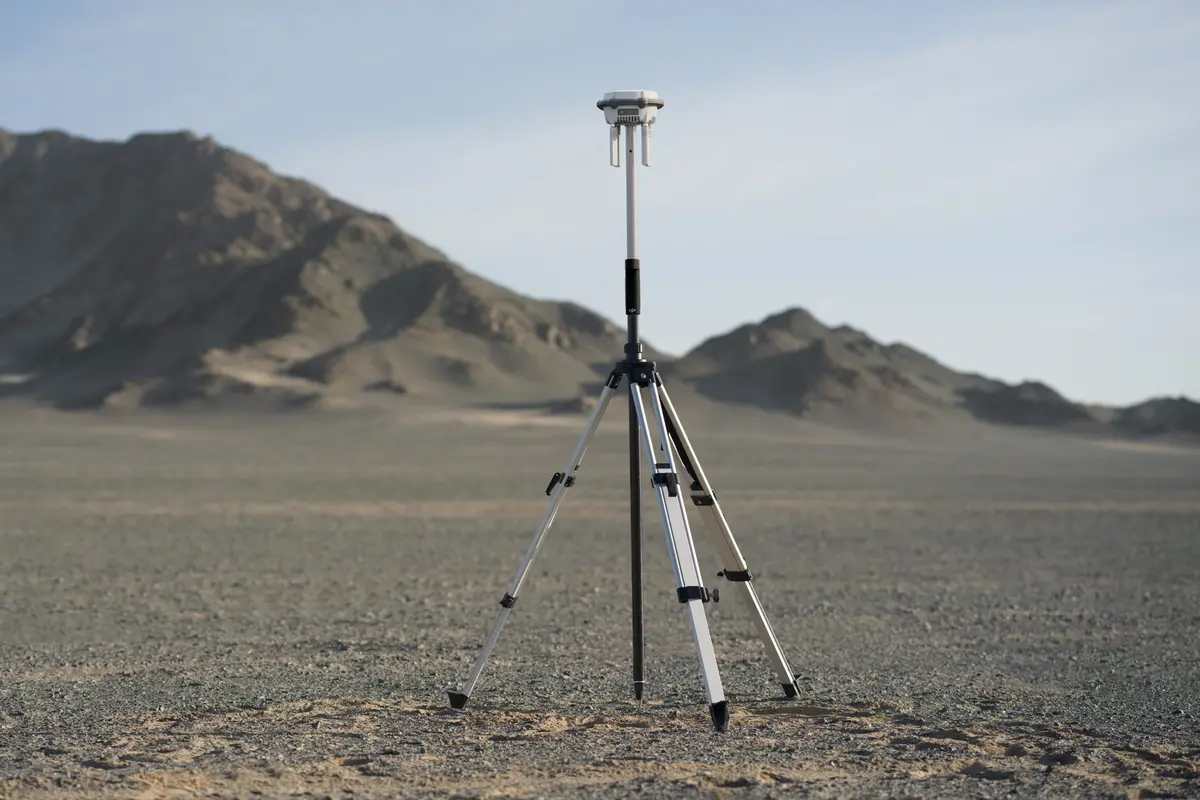

The DJI D-RTK 3 Multifunctional Station is a professional GNSS positioning system designed for enterprise drone operations. Rather than serving only one purpose, it is built as a multi-role field solution that can be used as a Base Station, Relay Station, or Rover Station depending on the workflow.
Highlights
High-bright display. IP54 protection rating. O4 Enterprise video transmission. Support for both SDR and 4G hybrid transmission.
Tips

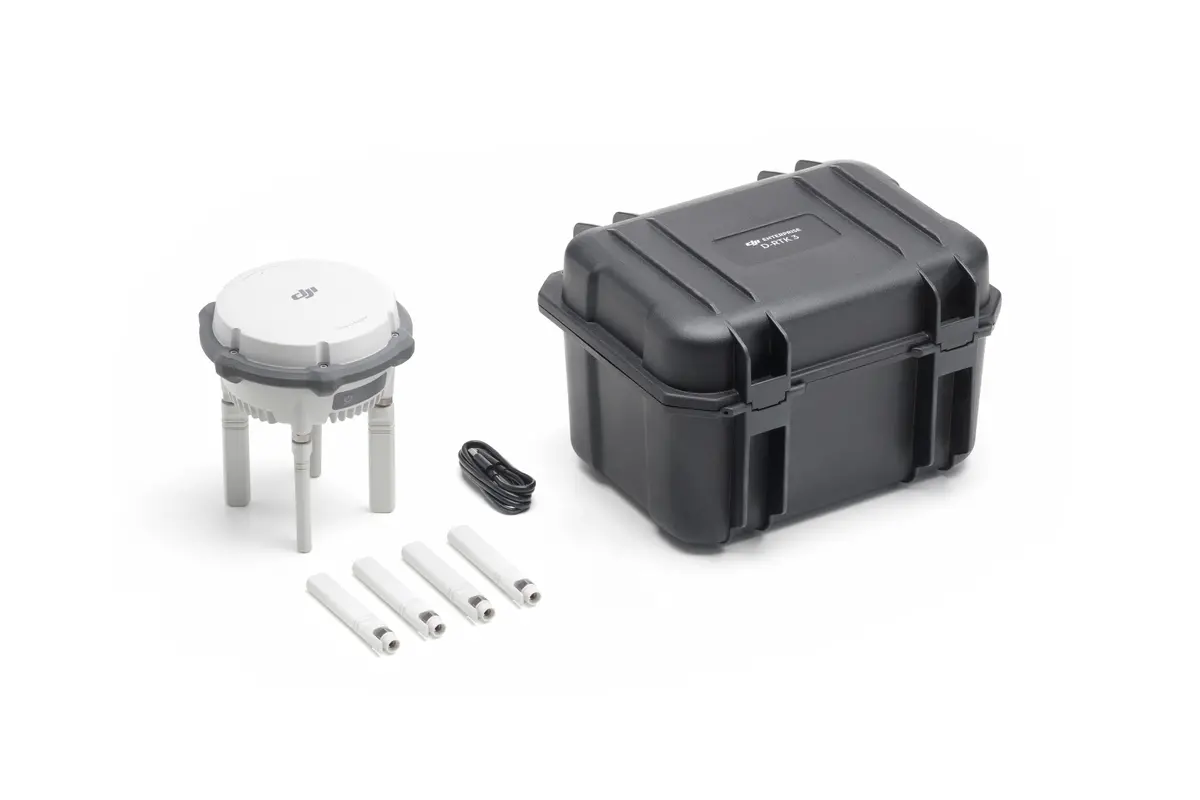

Package Contents
D-RTK 3 Multi-Function Base Station × 1
Spare OcuSync Directional Antenna × 4
A-C Data Cable × 1
Technical Specifications
Satellite Reception Frequencies
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
Galileo: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
Rover Mode Accuracy
Fixed Measurement:
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
Tilt Measurement:
Angle Range: 0° to 60°
Horizontal: 8 mm + 0.7 mm/° Tilt (Accuracy <2 within 30°) (cm)
Maximum effective signal range (relay mode, no interference, no obstruction)
FCC:
Drone – Relay distance 15 km
Relay – Remote controller distance 1 km
SRRC:
Drone – Relay distance 12 km
Relay – Remote controller distance 1 km
CE:
Drone – Relay distance 8 km
Relay – Remote controller distance 300 m
Protection rating: Single unit: IP67
Dimensions: Φ 163 mm × 89 mm (excluding OcuSync directional antenna)
Weight: 1.26 kg
Let’s Answer Your Questions
It is used for high-precision enterprise workflows including drone mapping, RTK positioning, control point collection, and signal relay support. DJI states that it can operate in Base Station, Relay Station and Rover Station modes.
Yes. DJI says it can connect with multiple DJI aircraft in Broadcast Mode. In Relay Mode, it can connect with one remote controller and its paired aircraft.
