Description
Take a Closer Look

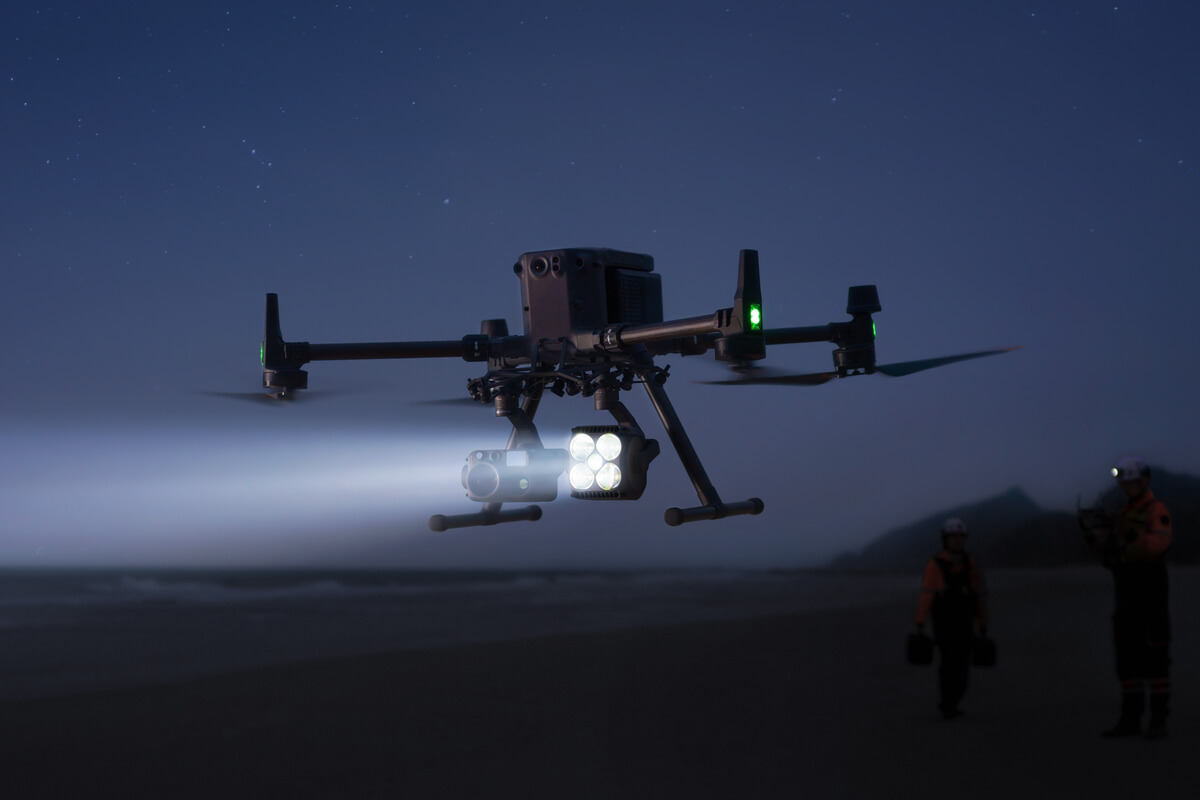

Dji Zenmuse S1 Spotlight is DJI’s first spotlight designed for multi-payload drone platforms. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.
Highlights
Zenmuse S1 is DJI’s first spotlight designed for multi-payload drone platforms, offering high brightness and long illumination distance.
Tips
1. Download and read the safety guidelines and user manual from the DJI official website before using for the first time.
2. Using the spotlight at night may result in obstacle avoidance errors. You can disable obstacle avoidance as needed and operate the aircraft and spotlight in relatively open and spacious areas.
3. When using Zenmuse S1, do not look directly at the spotlight from a close distance to avoid potential harm. Please ensure safety.
4. Do not touch the spotlight lens coating directly with your hands or scratch it with hard objects, as this may reduce light output efficiency and affect luminous flux and illuminance.
In The Box
Zenmuse S1 × 1
Lens Protection Cover × 1
Carrying Case × 1
Lens Cleaning Cloth × 1
Specifications
Weight: 760±10 g
Dimensions: 125×152×171 mm (L×W×H)
Rated power: 120 W with Matrice 400; 68 W with Matrice 300 RTK or Matrice 350 RTK.
Maximum central illuminance in Both On mode: 40 lux at 100 m with Matrice 400; 35 lux at 100 m with Matrice 300 RTK or Matrice 350 RTK.
Effective illumination distance: 500 m in Both On mode.
Supported aircraft: Matrice 400, Matrice 350 RTK and Matrice 300 RTK. Matrice 350 RTK and Matrice 300 RTK require DJI RC Plus.
Ingress protection: IP54 under DJI’s specified test conditions; protection can diminish with wear.
Operating temperature: -20° to 40° C.
Illumination figures are laboratory measurements; the result depends on the environment and operating conditions.
Compatibility
DJI Matrice 400
Matrice 350 RTK
Matrice 300 RTK
Let’s Answer Your Questions
Zenmuse S1 is used for night-time drone operations such as search and rescue, law enforcement, and industrial inspections, providing powerful long-distance illumination.
The Zenmuse S1 provides an illumination distance of up to 500 meters, making it suitable for large-scale night missions.
DJI lists Matrice 400, Matrice 350 RTK and Matrice 300 RTK. Matrice 350 RTK and Matrice 300 RTK require DJI RC Plus and supported firmware.
S1 supports Low Beam, High Beam and Both On lighting modes, together with brightness adjustment and strobe control.
Zenmuse S1 has an IP54 rating, providing protection against dust and water for outdoor operations.
