Description
Overview

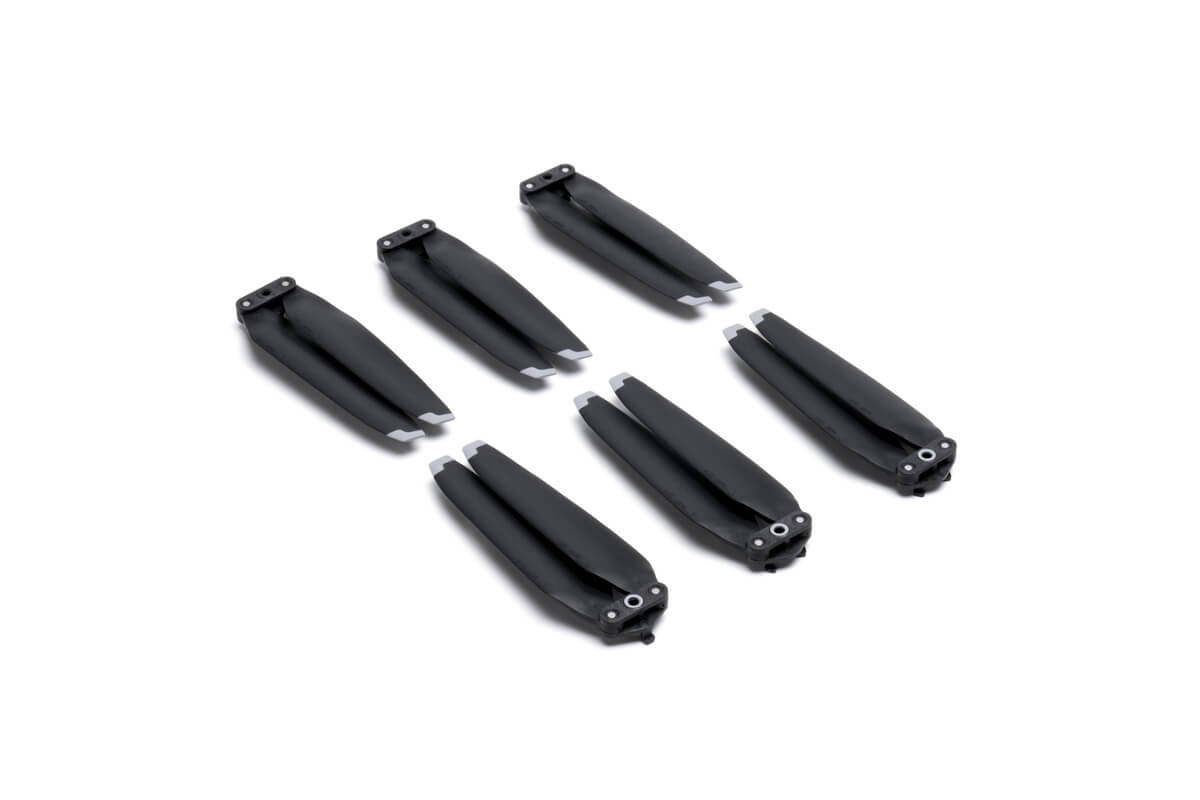

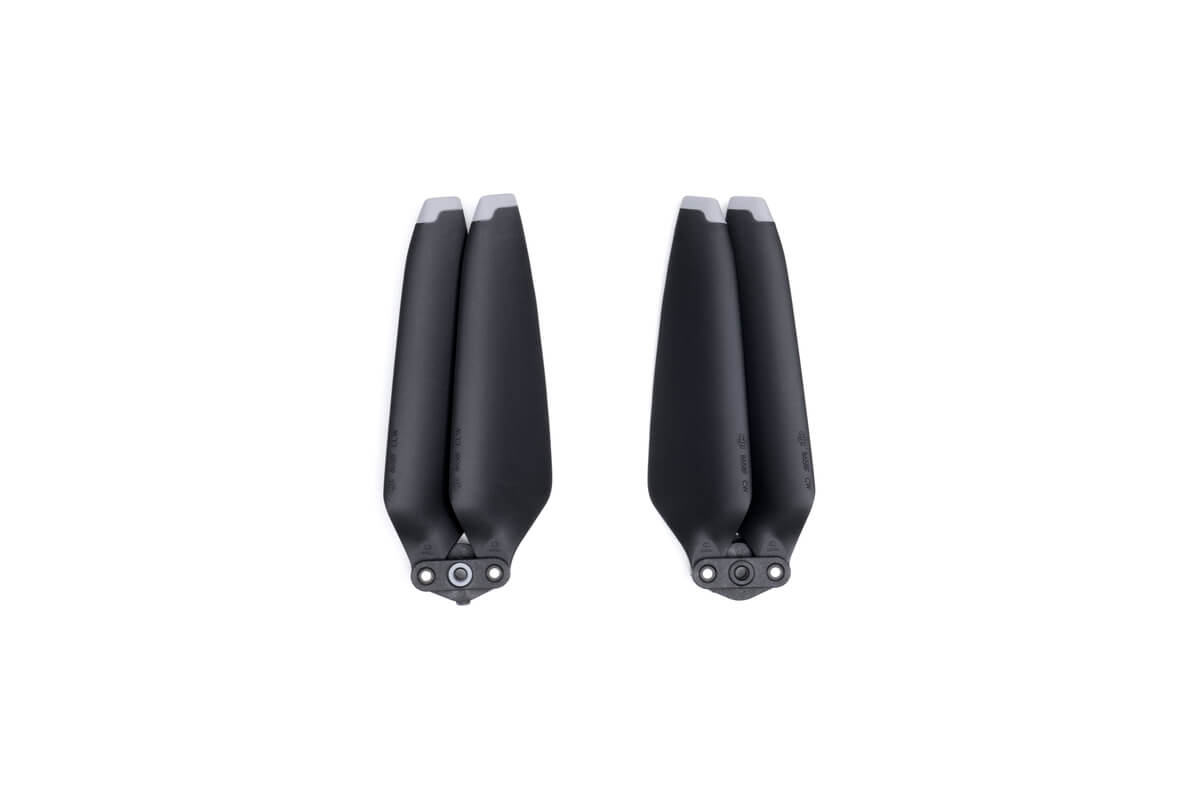

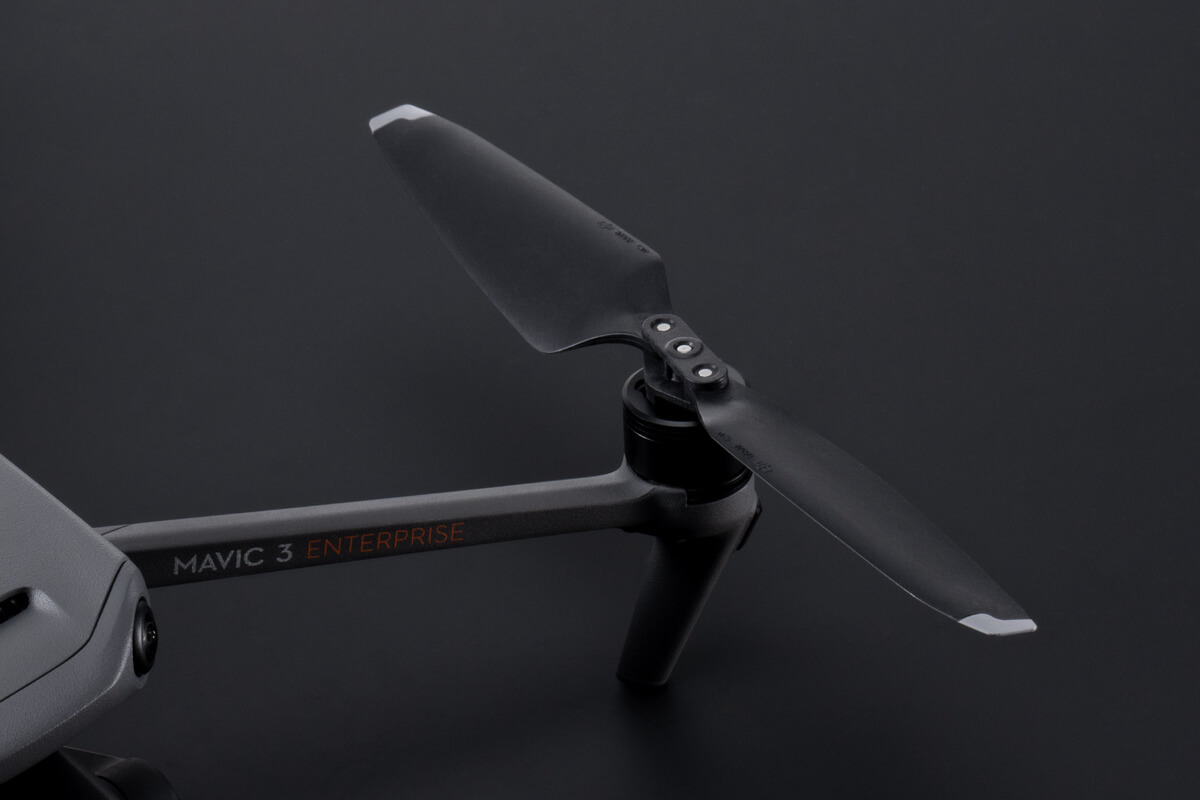

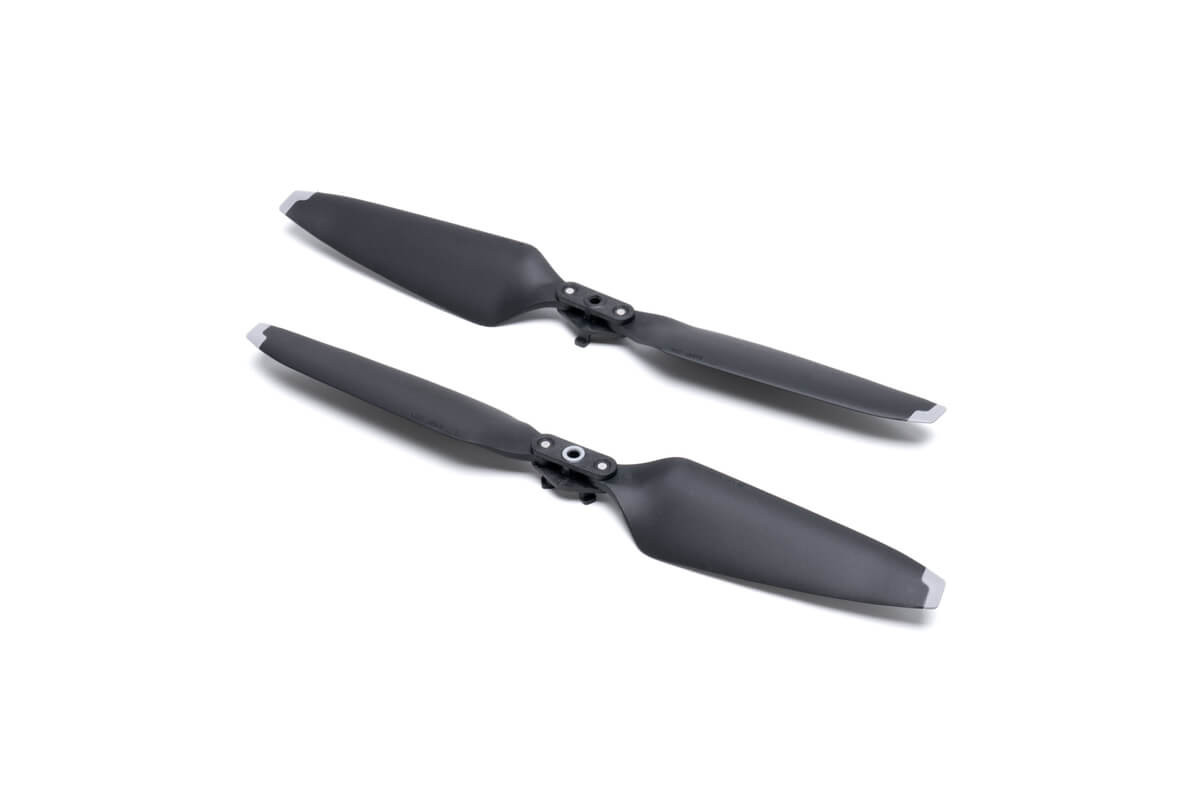

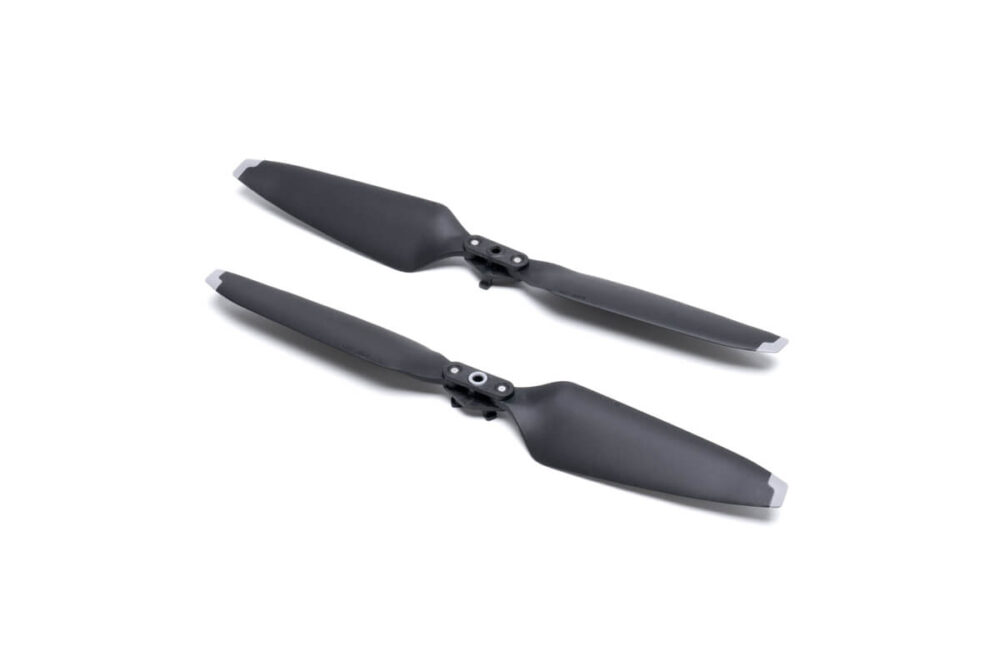

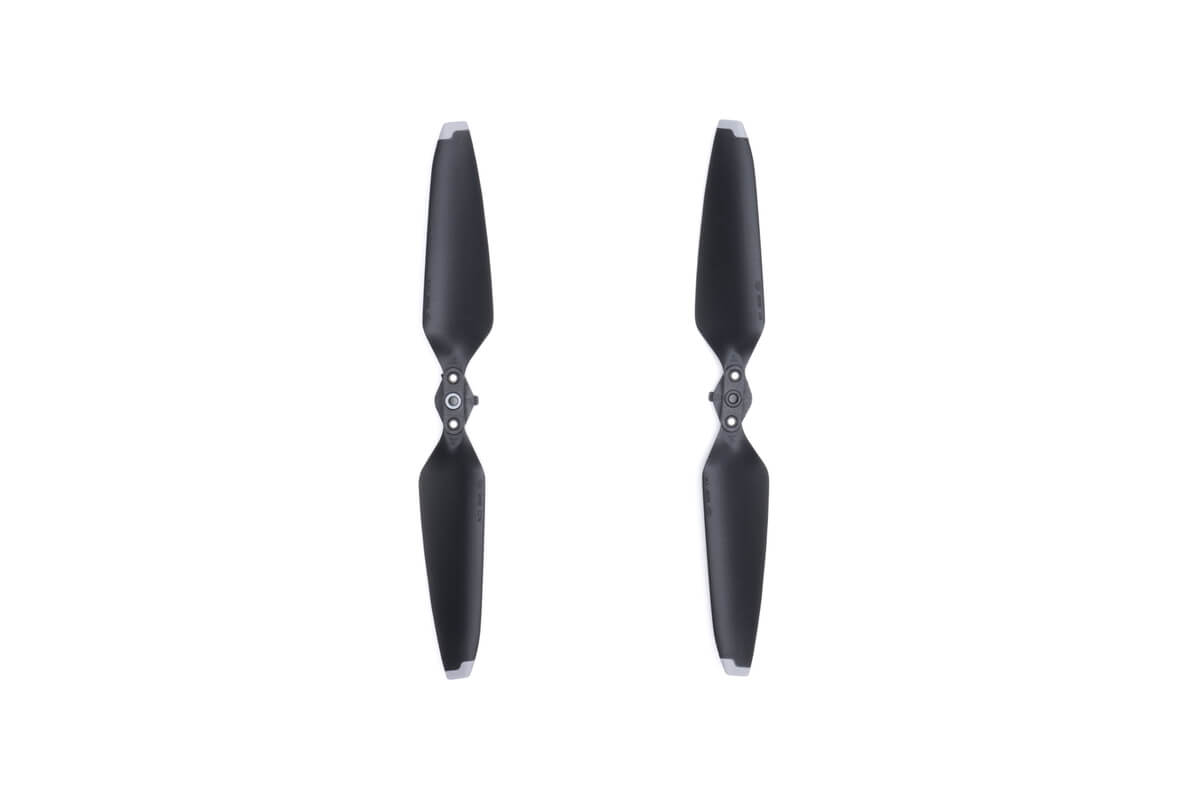

Replacement low-noise propellers for the supported Mavic 3 Enterprise Series configurations. They are the propeller type specified by DJI for its documented C1/C2 configurations.
Confirm the aircraft model and its approved configuration, and select the correct 8658F propellers. Follow the DJI fitting instructions and do not mix them with a different propeller type.
Compatible equipment
For the documented DJI Mavic 3 Enterprise Series and Mavic 3M configurations. The 8658F low-noise propeller is specified for applicable EU C1/C2 configurations. It is a different product from the 9453F standard enterprise propeller. Match marked and unmarked propellers to their corresponding motors and do not mix propeller types.
Technical specifications
| Propeller model | 8658F |
|---|---|
| Diameter × pitch | 8.6 × 5.8 in |
| Mass per propeller | 8.4 g |
| Retail pack | 1 pair / 2 propellers |
| Manufacturer part number | CP.EN.00000501.01 |
Included items
- DJI Mavic 3 Enterprise Series Low-Noise Propellers (pair) × 1
Not included
- Aircraft
- Flight battery
- A complete four-propeller aircraft set; this pack contains one pair
Installation and use
- Power off the aircraft and inspect all propellers and motors.
- Match each marked propeller to a marked motor and each unmarked propeller to an unmarked motor.
- Hold the motor, press the propeller down and rotate in the indicated direction until locked.
- Check every fitted propeller is secure and undamaged; do not mix propeller types.
